Next-Gen Zone System & AR Mapping

Zone calculator, false-color overlay, histogram, film latitude warnings

Features in this section

Place each scene brightness on a numbered zone scale from 0 (black) to X (white).

Tools tab > Zone System

Live Zone System color map over the preview.

Viewfinder > Layers icon > False color

Detect when a metered spot would clip past the loaded film's latitude.

Viewfinder > (drives the chips and zone ruler automatically when a reading clips)

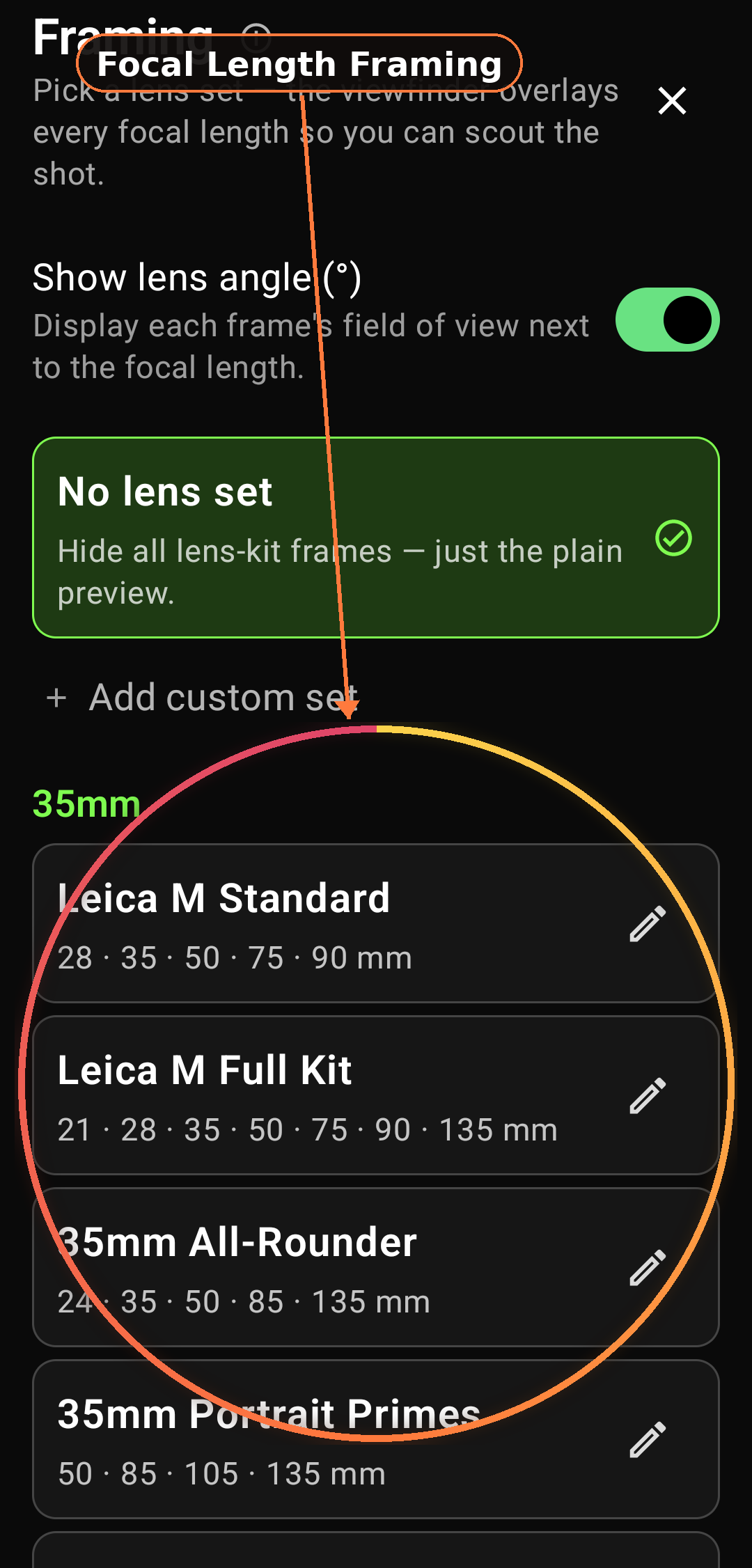

Pre-visualize the crop of any focal length on the live preview.

Viewfinder > Crop icon > Framing Overlay sheet

Every Log Shot saves a gallery-matte zone map card.

Viewfinder > Log Shot button (card written to the shot log gallery)

Toggleable 256-bin luminance histogram on the viewfinder.

Viewfinder > Histogram toolbar button

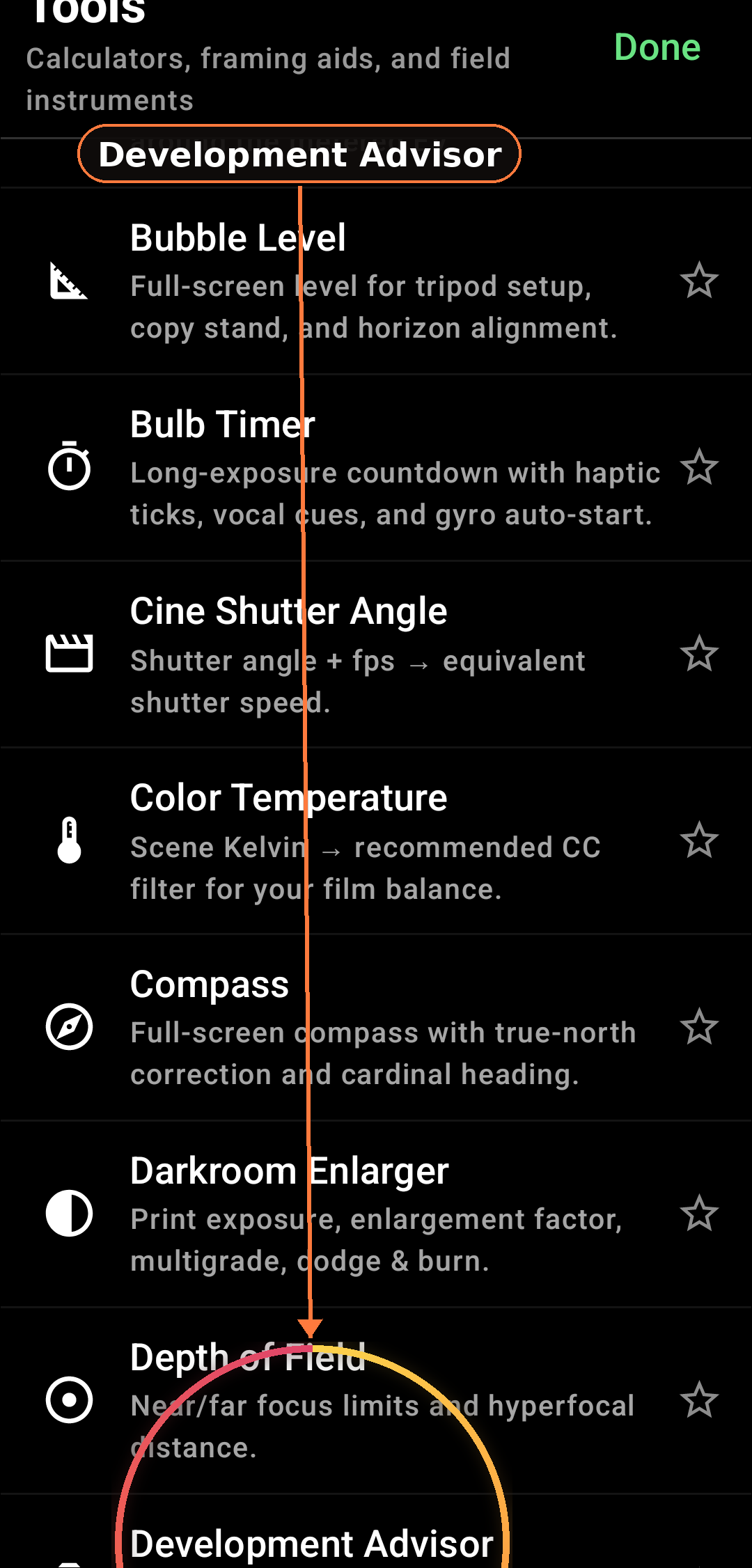

Pick N+/N or N- development time based on scene SBR and target contrast.

Tools tab > Development Advisor

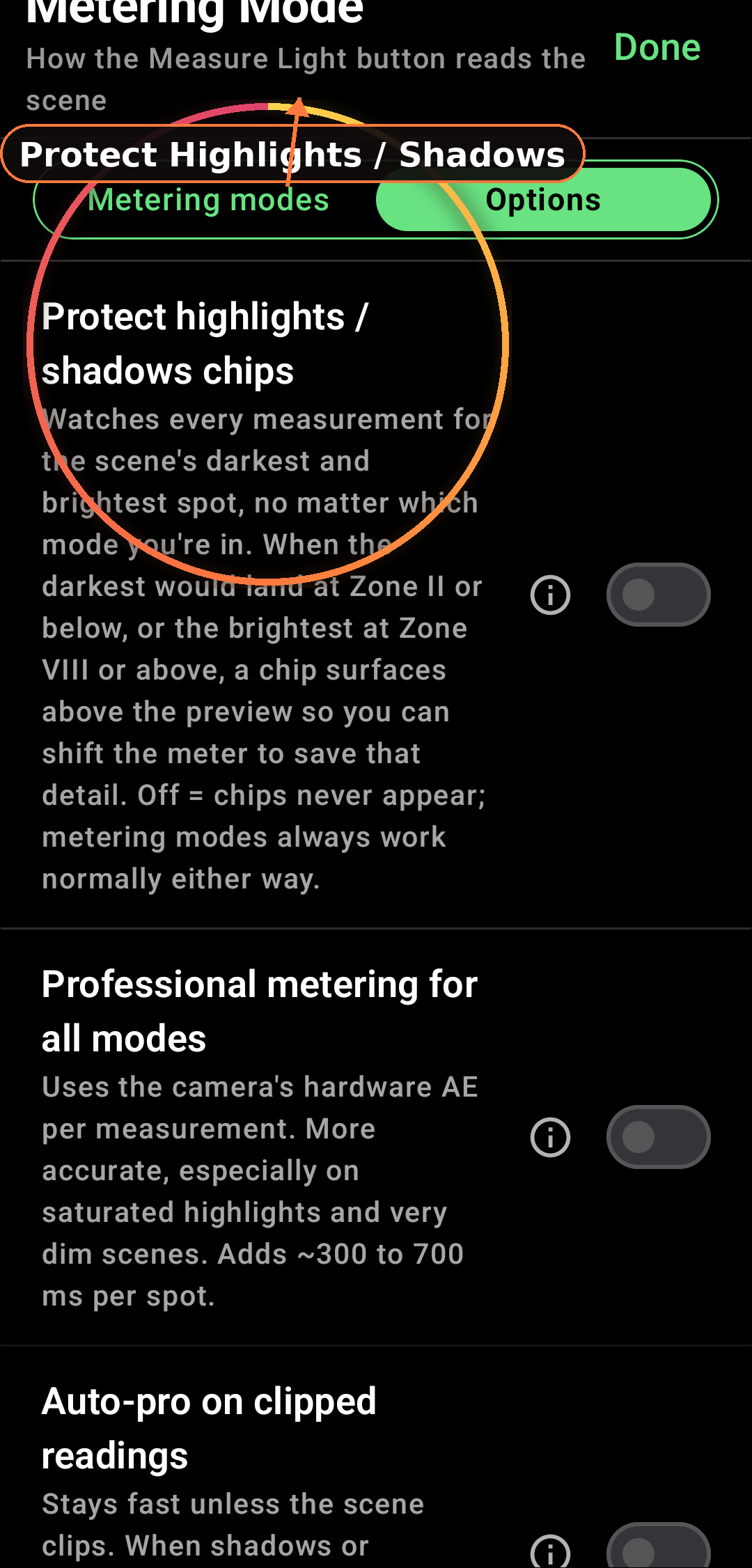

Scene-aware safety net. Catches blown highlights and crushed shadows.

Viewfinder > Metering Mode icon > Options tab > Protect highlights / shadows chips

Visual confirmation of what's clipping. Strobing red and blue overlay.

Viewfinder > Metering Mode icon > Options tab > Blink overexposed / underexposed zones
